TNC series
The TNC connectors are threaded RF connectors applicable from DC up to 11 GHz; precision designs using a dielectric bead are suitable for use up to 18 GHz. The threaded coupling mechanism improves control over the interface dimensions and allows them to be used under a higher environmental load than BNC, especially under a high vibration load.
This connector range is suitable for the standard range of flexible and semi-rigid cables and is also available in PCB and panel mount versions.
The characteristic impedance of the TNC coaxial connectors is 50 ohm or 75 ohm. Within the internationally standardized TNC mating face dimensions a perfect 75 ohm characteristic impedance can not be realized. However, at frequencies up to 1 GHz the small impedance deviation is negligible fro practical applications.
TNC coaxial connectors meet the specification of IEC 60169-17 and MIL-C-39012.
- 50 1110 111 01
- RPTNC male crimp for cable connector
- 50 1110 116 01
- RPTNC male crimp for cable connector
- 50 1110 115 01
- RPTNC male crimp for cable connector

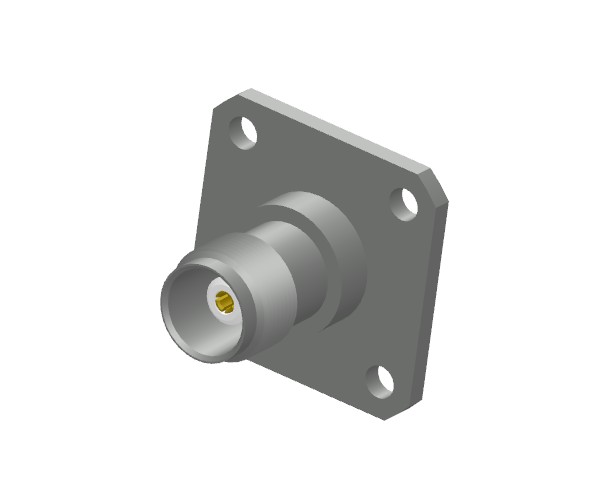

- 50 1121 046 01
- TNC female flange mounted connector

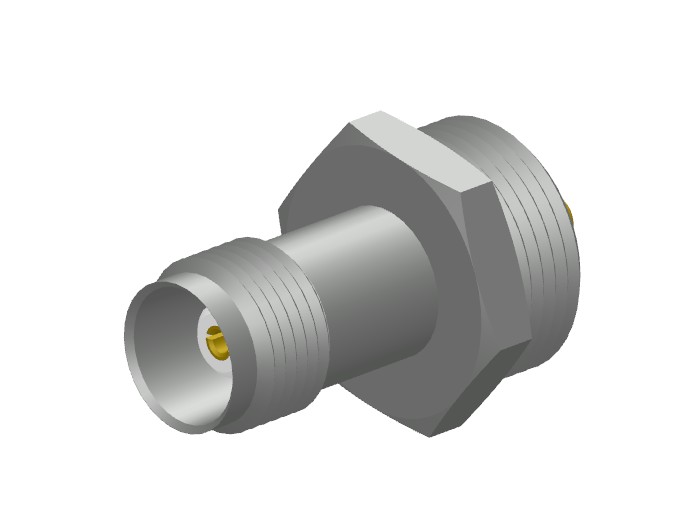

- 50 1121 076 01
- TNC female thread mounted connector（TNC-KYD-1）

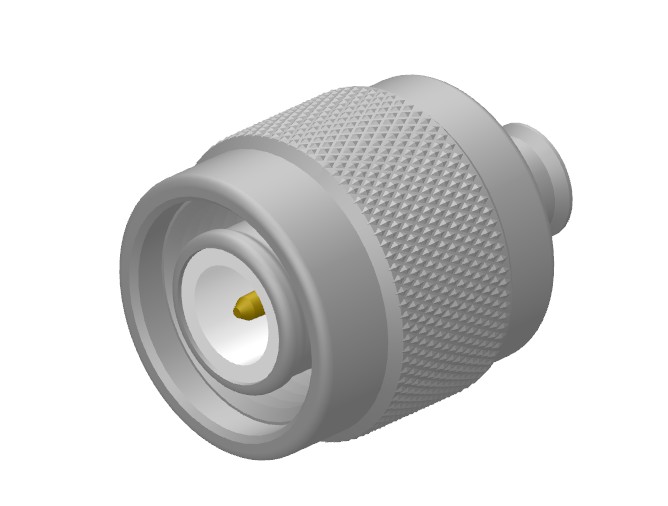

- 50 1111 330 01
- TNC male solder for cable connector
- 50 1111 329 01
- TNC male solder for cable connector

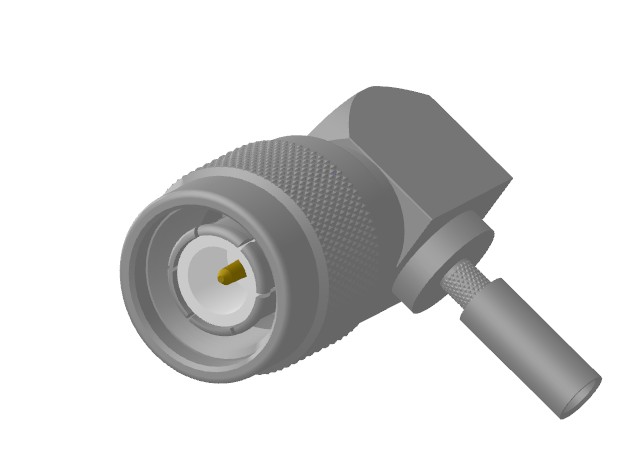

- 50 1011 112 01
- TNC male R/A crimp for cable connector
- 50 1011 111 01
- TNC male R/A crimp for cable connector
- 50 1011 116 01
- TNC male R/A crimp for cable connector
- 50 1011 115 01
- TNC male R/A crimp for cable connector

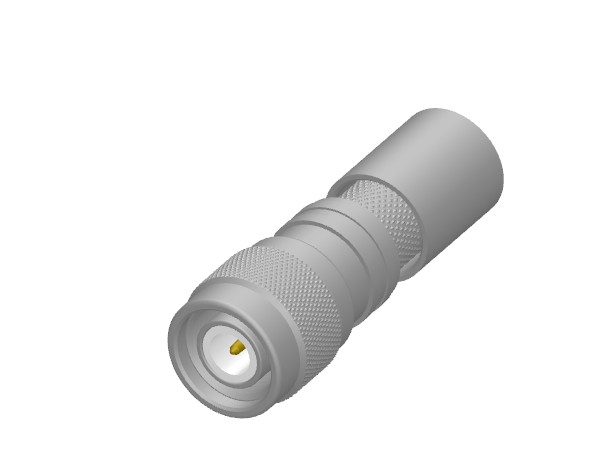

- 50 1111 110 01
- TNC male crimp for cable connector
