SMA series

The SMA treaded interface connectors are been designed for higher frequency applications where maximum reliability and robustness is required. KERUI SMA connectors are precision connectors for microwave applications up to 26.5 GHz. There is a huge variety of applications for KERUI SMA connectors, such as mobile communication, test & measurement, instruments, avionics, etc.

This connector range is suitable for the standard ranges of flexible and semi-rigid cables and is also available in PCB and panel mount versions. Two ranges of SMA connectors are available: The standard range is manufactured with brass housings and the special range is manufactured with stainless steel housings.

The characteristic impedance of the SMA coaxial connector is 50 ohm. They meet the specification of IEC 169-15 and MIL-C-39012.

  • 10 1121 051 14
    10 1121 051 14
    SMA 2 HOLES FLANGE EPOXY CAPTIVE JACK RECEPTACLE
    (SMA-KFD-26)

  • 10 1121 046 06
    10 1121 046 06
    SMA female 1" flange panel mounted receptacle
    (SMA-KFD-51)

  • 10 1121 046 05
    10 1121 046 05
    SMA female 1" flange panel mounted receptacle
    (SMA-KFD-74)

  • 10 1121 046 01
    10 1121 046 01
    SMA female 1" flange panel mounted receptacle
    (SMA-KFD-50)

  • 10 1121 071 11
    10 1121 071 11
    SMA JACK receptacle
    (SMA-KYD-3)

  • 10 1121 056 02
    10 1121 056 02
    SMA female panel mounted receptacle
    (SMA-KFD-52)

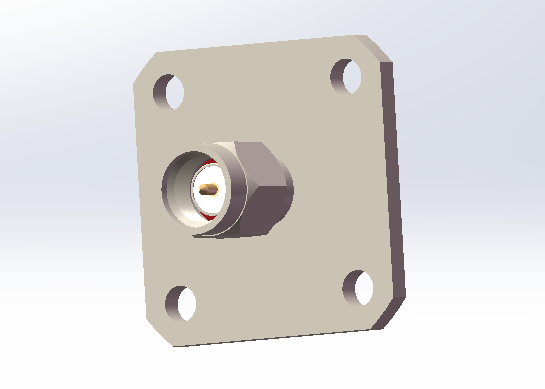

  • 10 1111 046 01
    10 1111 046 01
    SMA male 1" flange
    panel mounted receptacle
    (SMA-JFD-1)

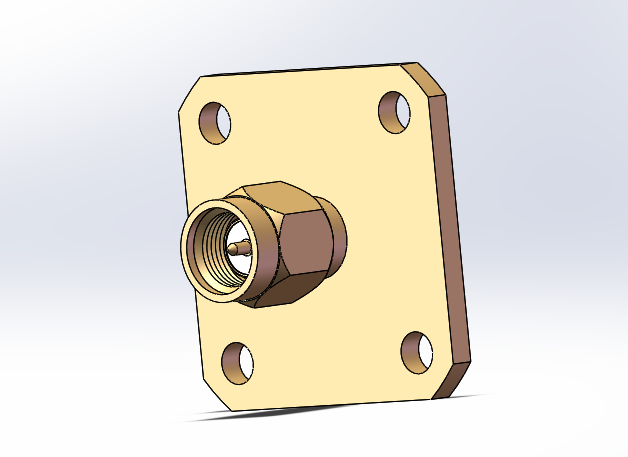

  • 10 1111 046 02
    10 1111 046 02
    SMA male 1" flange
    panel mounted receptacle
    (SMA-JFD-2)

  • 10 1121 041 31
    10 1121 041 31
    SMA female flange mounted receptacle(epoxy captivated)
  • 10 1121 114 01
    10 1121 114 01
    SMA female bulkhead mounted crimp for cable connector
  • 17 1121 042 10
    17 1121 042 10
    Super SMA female flange mounted receptacle
  • 17 1121 042 09
    17 1121 042 09
    Super SMA female flange mounted receptacle
All82records  current:1/7  12records/page  1 [2][3][4][5] : :
