1.0/2.3 series

The 1.0/2.3 series is a European design introduced in the 1990’s. The compact design of the 1.0/2.3 permits dense connector packing; they are ideally suited to applications where space limitation is a factor.

KERUI 1.0/2.3 series contains connectors with a quick latch coupling mechanism; connection is achieved by simply pushing the plug into the jack, 3 steel balls automatically engage. The connectors are easily released by slightly pulling back the outer sleeve of the plug.

The series connectors are operating from DC to 4 GHz, interface dimensions conformable to the standards: DIN 41626, and IEC 60169-29.

  • 40 0021 031 01
    40 0021 031 01

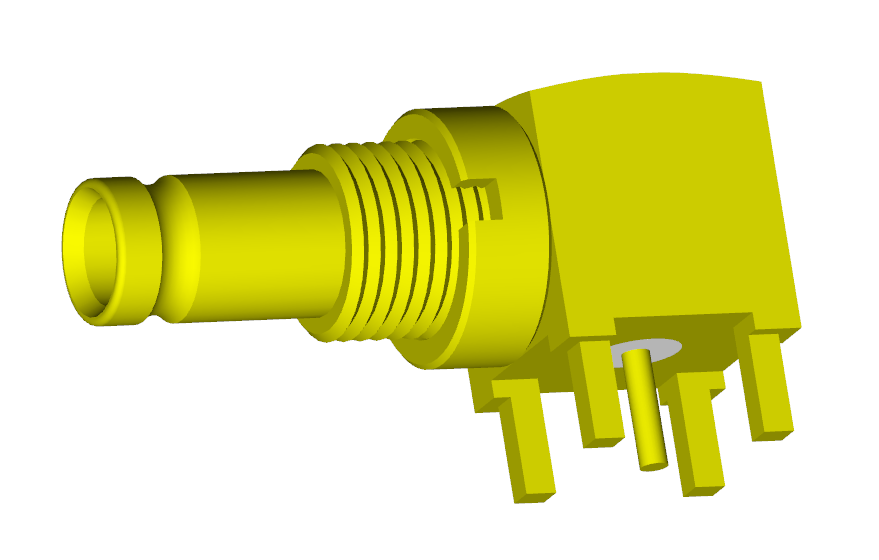

    1.0/2.3 Female R/A PVB mounted receptacle
  • 40 1121 031 01
    40 1121 031 01

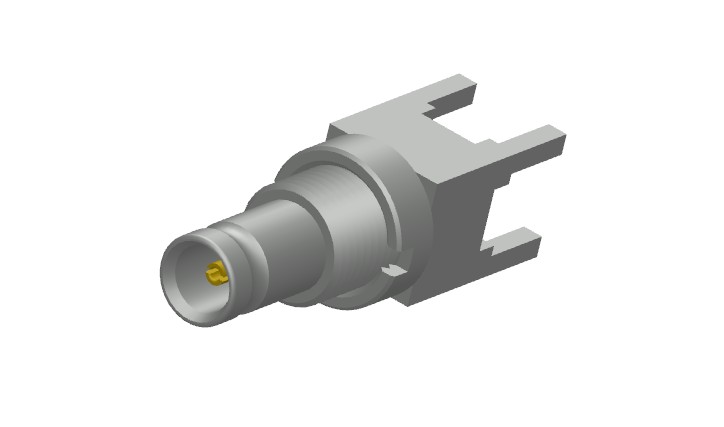

    1.0/2.3 female PCB mounted receptacle
  • 40 0121 106 01
    40 0121 106 01
    1.0/2.3 75ohm female crimp for cable connector
  • 40 0111 109 01
    40 0111 109 01
    1.0/2.3 75ohm male crimp for cable connector
  • 40 0011 106 01
    40 0011 106 01

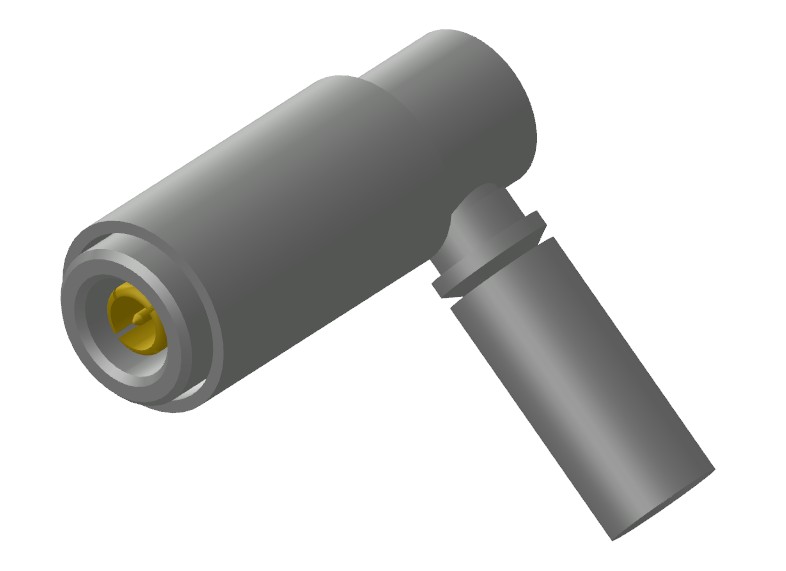

    1.0/2.3 75ohm male R/A crimp for cable connector
  • 40 0111 107 01
    40 0111 107 01
    1.0/2.3 75ohm male crimp for cable connector
  • 40 0111 106 01
    40 0111 106 01
    1.0/2.3 75ohm male crimp for cable connector
  • 40 1111 121 01
    40 1111 121 01
    1.0/2.3 male crimp for cable connector
  • 40 1111 120 01
    40 1111 120 01
    1.0/2.3 male crimp for cable connector
  • 40 1111 111 01
    40 1111 111 01
    1.0/2.3 male crimp for cable connector
  • 40 1111 115 01
    40 1111 115 01
    1.0/2.3 male crimp for cable connector
