F series

The F connectors are one of miniature connectors. F connectors are used in a variety of RF applications including cable television (CATV), set top boxes, cable modems, and other 75 ohm systems. Additionally, these female connectors must still accept .022 to .042 inch diameter conductors.

The characteristic impedance of the F series coaxial connectors is 75 ohm, they are applicable with good electric properties up to 3 GHz.

F series coaxial connectors meet the specification of IEC 60169-24.

  • 65 0121 031 01
    65 0121 031 01

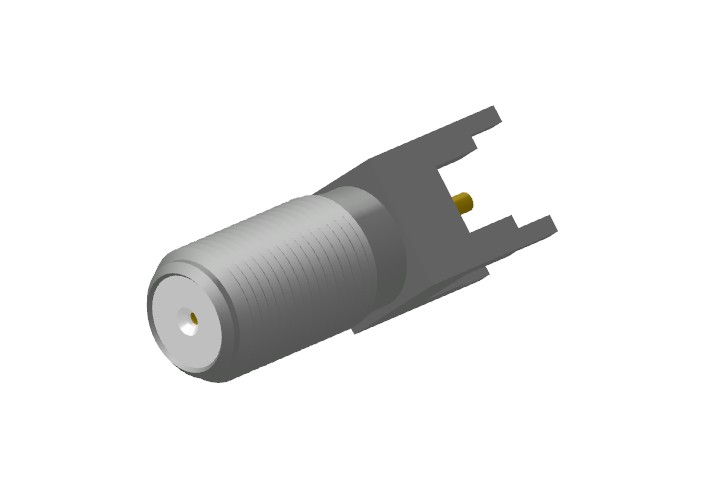

    F 75ohm female PCB mounted receptacle

  • 65 0121 081 01
    65 0121 081 01

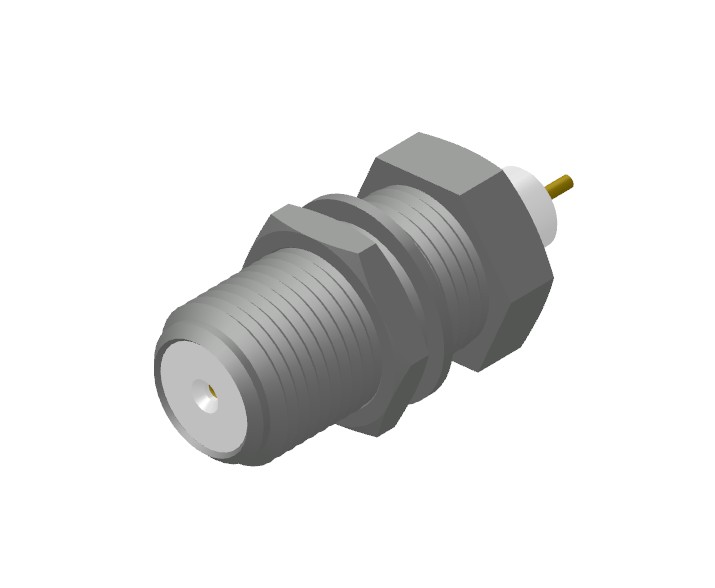

    F 75ohm female bulkhead mounted receptacle
  • 65 0121 103 01
    65 0121 103 01

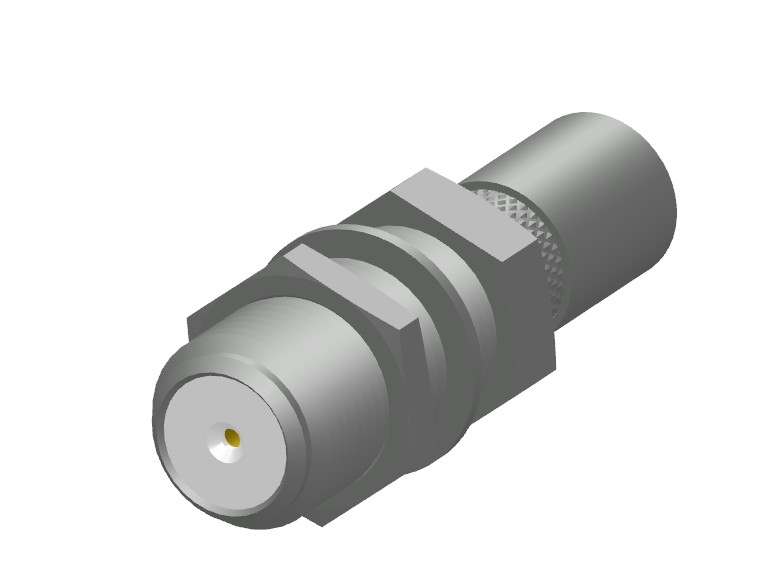

    F 75ohm female bulkhead mounted crimp for cable connector
  • 65 0121 101 01
    65 0121 101 01
    F 75ohm female bulkhead mounted crimp for cable connector
  • 65 0111 103 01
    65 0111 103 01

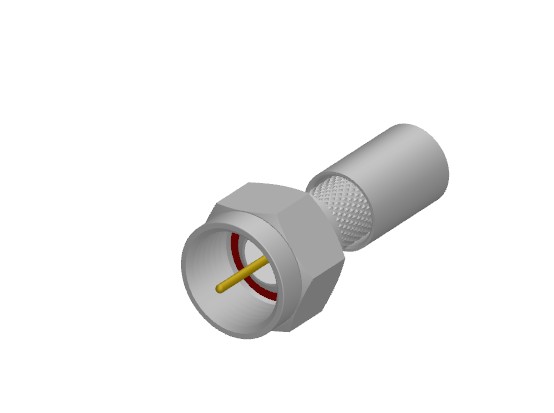

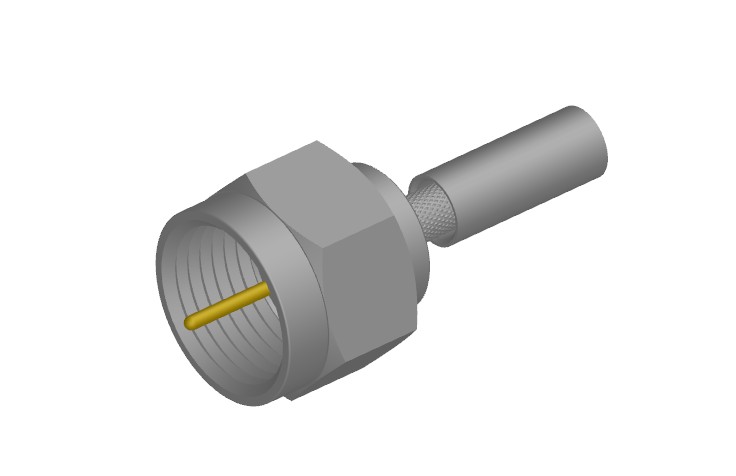

    F 75ohm male crimp for cable connector
  • 65 0111 101 01
    65 0111 101 01

    F 75ohm male crimp for cable connector

  • 65 0111 104 01
    65 0111 104 01
    F 75ohm male crimp for cable connector
All7records  current:1/1  12records/page  1
