7/16 series

The 7/16 threaded interface connectors have been designed for low inter modulation and VSWR applications in medium to high power transmission systems. Several styles within this range are supplied with sealing rings. Therefore they are suitable for outdoor and tower mounted application acc. To IP 68 water tightness.

This connector range is suitable for the standard ranges of flexible and semi-rigid cables and is also available in panel mount versions.

The characteristic impedance of the 7/16 series coaxial connectors is 50 ohm, they are applicable with excellent electrical properties up to 7.5 GHz.

7/16 series coaxial connectors meet the specification of IEC 169-4

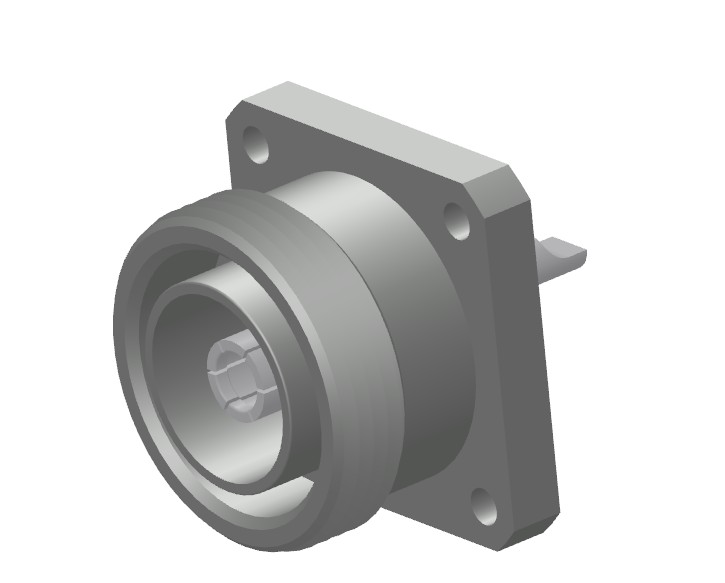

  • 90 1121 330 05
    90 1121 330 05
    DIN female flange cable connector solder for group 30 cable
    (DIN-KF141)

  • 90 1121 045 02
    90 1121 045 02
    7/16 female flange mounted receptacle
  • 90 1121 046 01
    90 1121 046 01
    7/16 female flange mounted receptacle
  • 90 1111 046 01
    90 1111 046 01
    7/16 male flange mounted receptacle
  • 90 1121 330 01
    90 1121 330 01
    7/16 female flange mounted solder for cable connector
  • 90 1121 331 02
    90 1121 331 02
    7/16 female flange mounted solder for cable connector
  • 90 1121 331 01
    90 1121 331 01
    7/16 female solder for cable connector
  • 90 1111 124 01
    90 1111 124 01
    7/16 male crimp for cable connector
  • 90 1111 123 01
    90 1111 123 01
    7/16 male crimp for cable connector
  • 90 1111 110 01
    90 1111 110 01
    7/16 male crimp for cable connector
  • 90 1111 331 01
    90 1111 331 01
    7/16 male solder for cable connector
All11records  current:1/1  12records/page  1
