TNC series

The TNC connectors are threaded RF connectors applicable from DC up to 11 GHz; precision designs using a dielectric bead are suitable for use up to 18 GHz. The threaded coupling mechanism improves control over the interface dimensions and allows them to be used under a higher environmental load than BNC, especially under a high vibration load.

This connector range is suitable for the standard range of flexible and semi-rigid cables and is also available in PCB and panel mount versions.

The characteristic impedance of the TNC coaxial connectors is 50 ohm or 75 ohm. Within the internationally standardized TNC mating face dimensions a perfect 75 ohm characteristic impedance can not be realized. However, at frequencies up to 1 GHz the small impedance deviation is negligible fro practical applications.

TNC coaxial connectors meet the specification of IEC 60169-17 and MIL-C-39012.

  • 50 1121 046 03
    50 1121 046 03

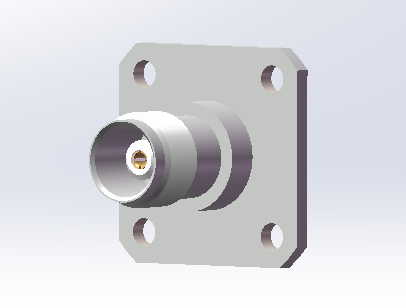

    TNC female 1" flange panel mounted receptacle
    (TNC-KFD-2)

  • 50 1121 046 07
    50 1121 046 07

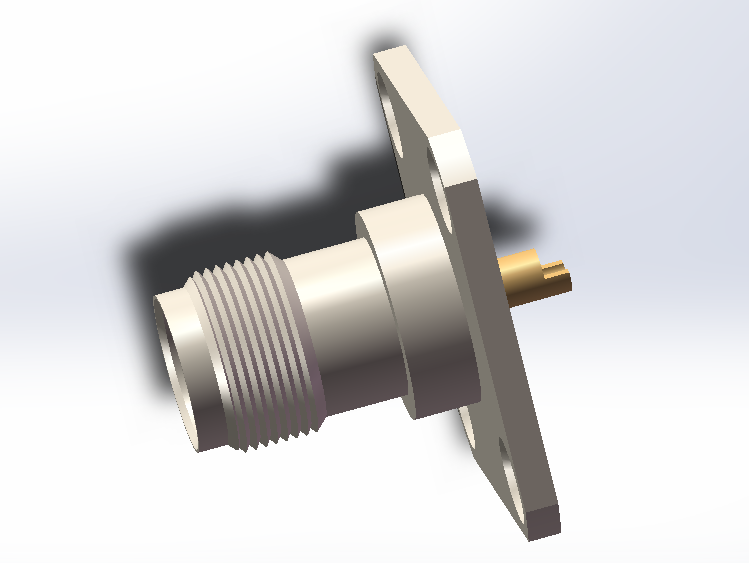

    TNC female 3/4" flange  panel mounted receptacle (TNC-KFD-00)
  • 50 1121 046 06
    50 1121 046 06
    TNC female 1" flange panel mounted receptacle
    (TNC-KFD-5)

  • 50 1120 110 01
    50 1120 110 01
    RPTNC female crimp for cable connector
  • 50 1120 122 01
    50 1120 122 01
    RPTNC female crimp for cable connector
  • 50 1120 121 01
    50 1120 121 01
    RPTNC female crimp for cable connector
  • 50 1120 120 01
    50 1120 120 01
    RPTNC female crimp for cable connector
  • 50 1120 112 01
    50 1120 112 01
    RPTNC female crimp for cable connector
  • 50 1120 111 01
    50 1120 111 01
    RPTNC female crimp for cable connector
  • 50 1120 330 01
    50 1120 330 01

    RPTNC female solder for cable connector

  • 50 1120 329 01
    50 1120 329 01

    RPTNC female solder for cable connector

  • 50 1110 112 01
    50 1110 112 01
    RPTNC male crimp for cable connector
