MMCX series

The MMCX coaxial connectors incorporate a micro miniature snap on latching action for easy and fast connection, same as MCX, but due to its non-slotted outer contact, the MMCX series provides a low RF-leakage. and additional advantage is their small physical size which is 50% of the standard MCX connectors.

The characteristic impedance of the MMCX coaxial connector is 50 ohm, and they can be used in applications from DC to 6 GHz.

MMCX coaxial connectors meet the specification of CECC 22340.

  • 08 1120 031 01
    08 1120 031 01
    RPMMCX female PCB mounted receptacle
  • 08 1020 116 01
    08 1020 116 01
    RPMMCX female R/A crimp for cable connector
  • 08 1020 115 01
    08 1020 115 01
    RPMMCX female R/A crimp for cable connector
  • 08 1120 329 01
    08 1120 329 01
    RPMMCX female solder for cable connector
  • 08 1120 116 01
    08 1120 116 01
    RPMMCX female crimp for cable connector
  • 08 1120 115 01
    08 1120 115 01
    RPMMCX female crimp for cable connector
  • 08 1021 031 01
    08 1021 031 01

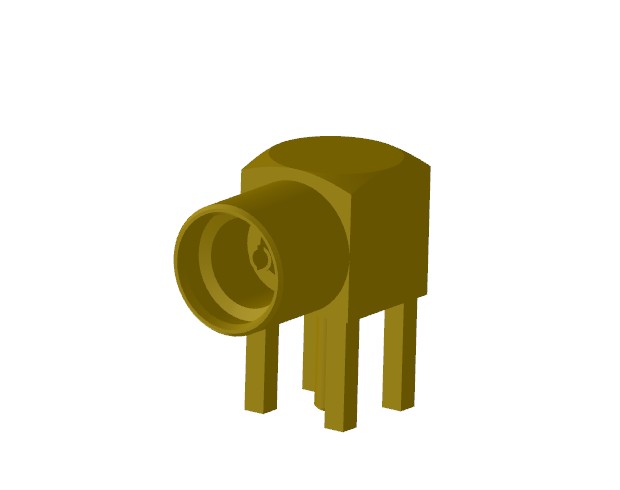

    MMCX female R/A PCB mounted receptacle
  • 08 1121 031 02
    08 1121 031 02

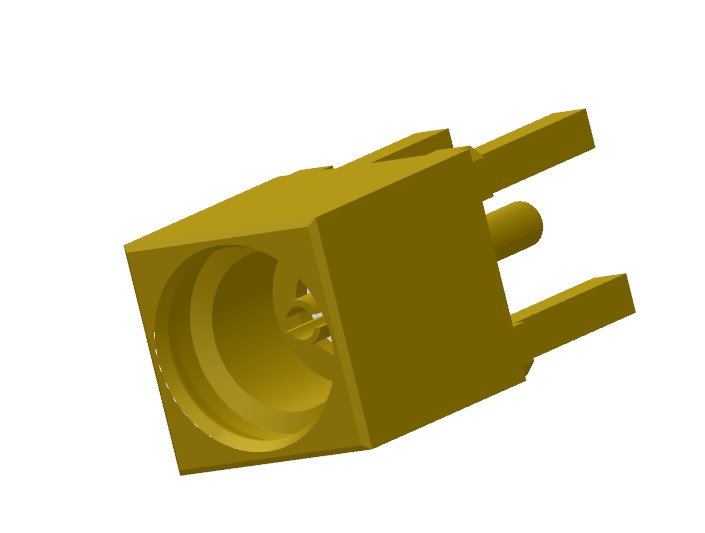

    MMCX female PCB mounted receptacle
  • 08 1121 031 01
    08 1121 031 01
    MMCX female PCB mounted receptacle
  • 08 1121 115 01
    08 1121 115 01
    MMCX female crimp for cable connector
  • 08 1011 329 01
    08 1011 329 01
    MMCX male R/A solder for cable connector
  • 08 1011 126 01
    08 1011 126 01
    MMCX male R/A crimp for cable connector
All19records  current:1/2  12records/page  1 [2] :
